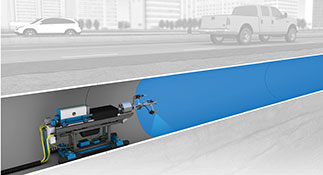

Whether the need is to address lead-contaminated water systems or rehabilitate structurally compromised pipelines, PipeArmor® Manufactured-in-Place Pipe™ delivers the means to return critical drinking water systems or larger sewer force mains to design requirements efficiently and at a lower total overall cost. Manhole-to-manhole lining technology minimizes the detrimental impact typical construction causes local business and assures street traffic can keep flowing. Our articulated robots can rehabilitate the most challenging pipe configurations – under roadways, rail lines, canals, over mountains or in treatment plants. Once installed, PipeArmor® liners restore system integrity and deliver a long, maintenance-free useful service life.
The advantages of PipeArmor® for Water /Wastewater
LINER AND INSTALLATION TECHNOLOGY:
- Service 8-inch to >174-inch diameters
- Engineer from a barrier coating to structural liner; 0.020 inch to 1.5 inch construction in a single pass
- Rehabilitates Carbon Steel, Ductile Iron, Cast Iron, PCCP, RCP, CFRP, FRP and more
- Installs over many existing linings and coatings
- Durability and high modulus flexural strength
- ANSI/NSF 61, ASTM D3681 formulations / AWWA M 28 Class III and Class IV1
- Manhole entry and remote managed installation minimizes cutouts along busy thoroughfares
- No size-on-size constraints; installs through 90° bends
- Laterals do not require remote reinstatement / valve removal may not be necessary
- Service restoration can be done immediately after inspection
LIFECYCLE BENEFITS:
- Stop water loss or effluent contaminations
- Improve hydraulics and flow efficiency; impacts less than 5% of cross section
- Stops degradation of host pipe; arrests corrosion and erosion
- Seals cracks or perforations; monolithic construction negates leaking (lead) pipe wall or joints
- Temperature, chemical, and abrasion resistant
- No residual catalyst; maintenance-free engineering
- Can improve water quality and taste
PipeArmor® in all its forms delivers a solution that solves the most challenging rehabilitation needs - delivering new options that relieve a significant stress on public capital budgets needed for aging pipeline replacement in the process. With PipeArmor® owners can significantly extend the service life of more linear feet of pipeline within the same budget, or apply the savings to reduce size of capital spend. The end result: Engineers, city budget directors and rate payers all have their needs met.
Applications of PipeArmor®
- Water transmission lines
- Distribution lines
- Sewer Force Main (=>36")
- Dams / Reservoirs
- Water plants
To learn more, or if have a project ready for bid, please contact
us at: Linepipe@questinspar.com or call: 713-568-9444
1 Equivalent specifications applying AASHTO H20 and ASTM F1216 Eq x.1.7 to calculate liner engineering requirement per host pipeline load
